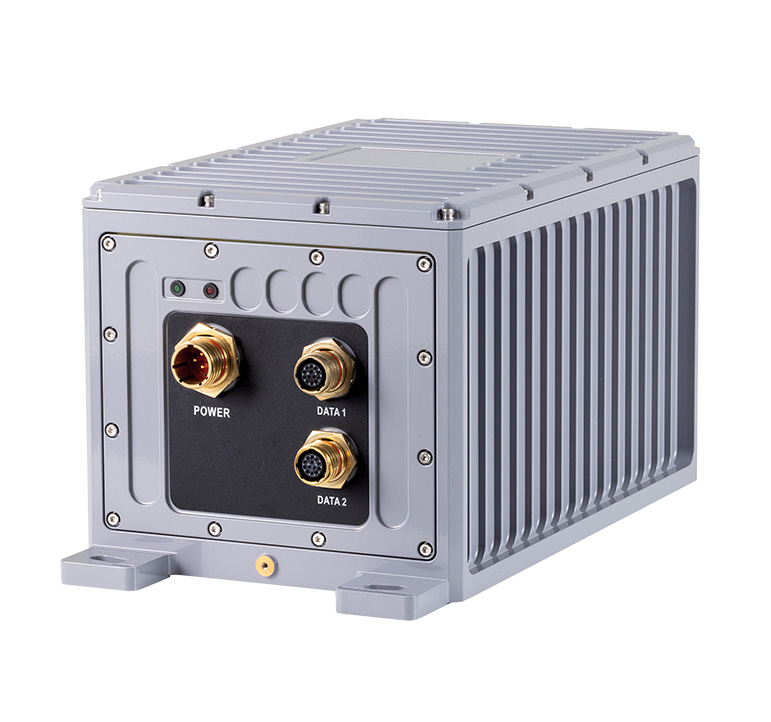

FN 210G

Inertial Navigation System for Gyrocompass

  • FOG based Inertial Navigation System  for Gyrocompass
  • Position Accuracy(INS/GPS): < 3 m
  • Heading Accuracy: < 0.1º  sec (LAT)
  • Attitude Accuracy(Static): 0.01º
  • Attitude Accuracy(Dynamic): 0.01º
  • Operating Voltage: 9 to 36 VDC
  • Power Consumption: < 15 W (typ.)
  • Dimension(L x W x H):  330 mm x 192mm x 180mm
    • Request Quote Catalog

    Description

    FIBERPRO’s Inertial Navigation System for gyrocompass purpose, FN 210G provides accurate heading, attitude and positional data for any type of surface vessel. It is ideal for customers seeking a cost-effective and reliable solution for navigation and control of commercial and defense vessels. FN 210G combines a high-accuracy FOG-based IMU and GPS receiver within a single enclosure for gyro compassing, inertial navigation, AHRS, stabilization, guidance and motion sensor that cover a wide range of applications. FN 210G consists of three axis fiber optic gyros, three axis Quartz Servo accelerometers and a strap-down processor. It provides heading, attitude, position, altitude and so on, which can be transferred by RS422(UART) at up to 200 Hz.

    Dimensions

    330 mm x 192 mm x 180 mm

    Application

    • Surface Vessel Navigation
    • Oceanographic and hydrographic operation
    • AHRS
